In this S4 Hana QM configuration step, you maintain the catalogs required for the inspection characteristics. The S4 Hana system delivers standard catalogs, and you can define new code groups with individual codes to meet the business requirements.
The catalog type defines the area of usage. The code group represents unique codes for use during various activities and events such as results recording, usage decisions, defect recording, etc.
How to Define Code Groups and Codes in SAP Hana QM
You can define code groups and codes in SAP S4 Hana QM using the following configuration navigation method.
| Title | Edit Code Groups and Codes |
| IMG Menu | Quality Management > Quality Planning > Basics Data > Catalogs > Edit Catalogs for Inspection Characteristics > Edit Code Groups and Code |
| Transaction Code | QS41 |
Step 1: Execute transaction code “QS41” and enter to continue

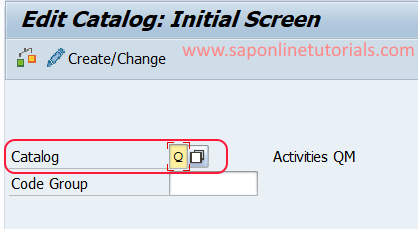

Step 2: On Edit Catalog: initial screen, enter the catalog type key and press enter to continue
Step 3: On the change view “Code Groups” overview screen, click on new entries to define code groups
Step 4: On new entries of code groups screen, update the following details
- Code-Group: Enter the key for the code group key
- Short Text: Enter the short description for the code group
- Status of code group: select the status of the code group from the list

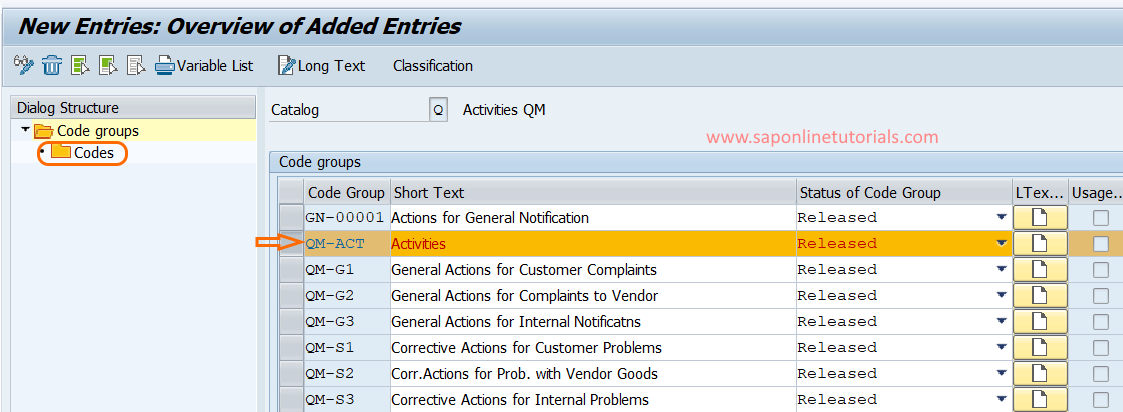

Step 5: Now select the code group and click on codes to maintain individual codes and description

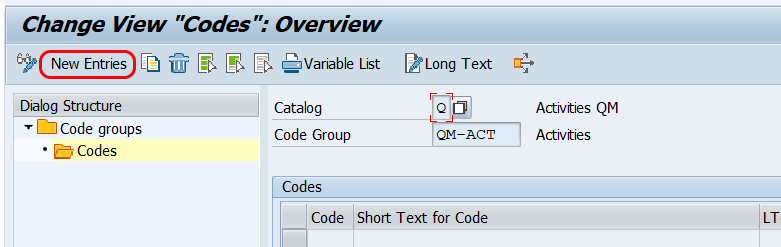

Step 6: On the change view “codes” overview screen, click on “New Entries”

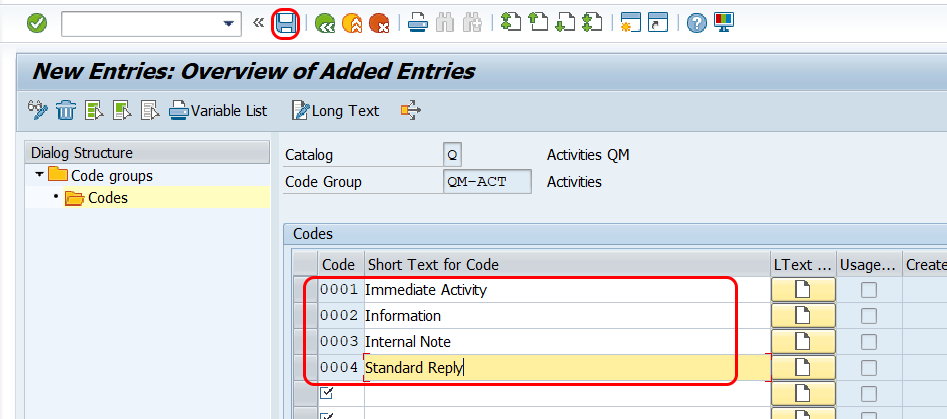

Step 7: On new entries of codes screen, update the code and short description for code as per required details.
Click on the save button to save the update code details in SAP Quality Management.
Similarly, define code for remaining code groups as per requirements and save the details.
